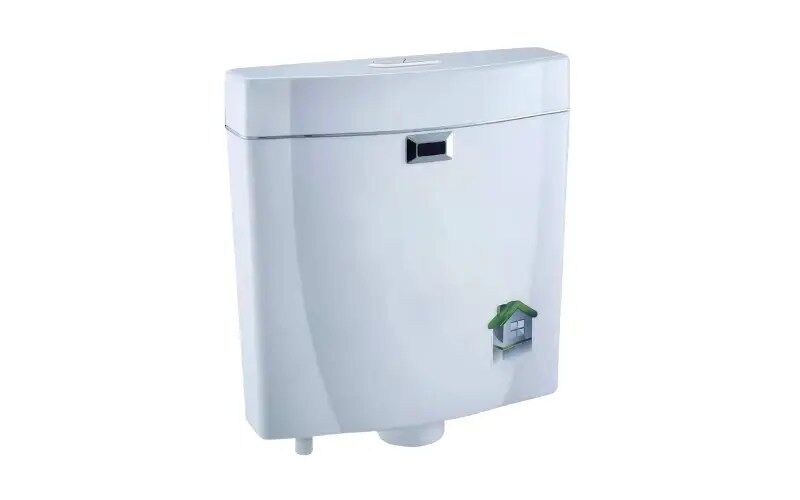

Automatic Flush Tank: WC-FT03
The WC-FT03 auto flush tank brings touchless flushing to any toilet installation with IR sensor technology housed in durable ABS plastic construction. Designed for both new builds and retrofit applications, this battery-powered unit requires no mains connection, simplifying installation across restroom layouts. The hands-free operation eliminates cross-contamination and provides reliable flushing in offices, hospitals, schools, and commercial facilities.
| Specification | Details |
|---|---|
| Body Material | ABS Plastic |
| Power | 6V DC Battery |
| Sensor Type | IR Touch-Free |
| Water Pressure | 0.5 to 7 Bar |
| Power Consumption | Under 0.5W |
| Life Cycle | 500,000 on/off cycles |
| Battery Type | 4 x AA Alkaline |
| Product Warranty | 1 Year |
Related products
Automatic WC Flusher with manual override : WC – 02
An automatic WC flusher for commercial toilets that combines touchless infrared sensing with a manual override button for intermediate flushing. The WC-02 ensures hygiene is maintained between sensor-triggered cycles, giving facility managers a reliable solution for high-traffic cubicles where both automation and user control matter.
| Specification | Details |
|---|---|
| Panel Material | 304 Stainless Steel |
| Sensor Type | Infrared, Touch-Free |
| Manual Override | Yes |
| Sensing Distance | Adjustable, 35 to 70 cm |
| Power Supply | 6V DC (4 AA alkaline batteries) |
| Power Consumption | Under 0.5W |
| Water Pressure | 0.5 to 7 Bar |
| Water Temperature | 0 to 60 degrees Celsius |
| Switching Time | Under 0.7 seconds |
| Life Cycle | 500,000 on/off cycles |
| Product Warranty | 1 Year |
Automatic WC Flusher : WC – 01
A fully automatic WC flusher for commercial toilets with touchless infrared sensing and a 304 stainless steel panel built to withstand humid, high-traffic washroom environments. The WC-01 triggers flushing automatically when a user steps away, removing the need for any manual contact.
| Specification | Details |
|---|---|
| Panel Material | 304 Stainless Steel |
| Sensor Type | Infrared, Touch-Free |
| Manual Override | No |
| Sensing Distance | Adjustable, 35 to 70 cm |
| Power Supply | 6V DC (4 AA alkaline batteries) |
| Power Consumption | Under 0.5W |
| Water Pressure | 0.5 to 7 Bar |
| Water Temperature | 0 to 60 degrees Celsius |
| Switching Time | Under 0.7 seconds |
| Life Cycle | 500,000 on/off cycles |
| Product Warranty | 1 Year |
Automatic Urinal Flusher- Exposed: US/WM – 03 ABS
An automatic urinal flusher with exposed ABS construction brings hygienic, hands-free flushing to corporate restrooms and public facilities. The US/WM-03ABS is engineered for facilities that need durable, touchless operation without concealment. Infrared sensing triggers instantaneous flush cycles, preventing cross-contamination and odor buildup.
| Specification | Details |
|---|---|
| Body Material | ABS Plastic |
| Power | 6V DC Battery |
| Sensor Type | IR Touch-Free |
| Water Pressure | 0.5 to 7 Bar |
| Sensing Range | 35 to 70 cm |
| Power Consumption | Under 0.5W |
| Life Cycle | 500,000 on/off cycles |
| Battery Type | 4 x AA Alkaline |
| Product Warranty | 1 Year |
Automatic Urinal Flusher- Exposed: US/WM – 03
The US/WM-03 automatic urinal flusher delivers touchless, hygienic operation in commercial washrooms through exposed brass and chrome construction. Designed for facilities that prioritize durability and easy maintenance. Infrared sensing eliminates manual flushing, reducing cross-contamination and odor issues.
| Specification | Details |
|---|---|
| Body Material | Brass + Chrome |
| Power | 6V DC Battery |
| Sensor Type | IR Touch-Free |
| Water Pressure | 0.5 to 7 Bar |
| Sensing Range | 35 to 70 cm |
| Power Consumption | Under 0.5W |
| Life Cycle | 500,000 on/off cycles |
| Battery Type | 4 x AA Alkaline |
| Product Warranty | 1 Year |
Automatic Urinal Flusher- Concealed : US – 01
The HY-336 auto urinal flusher eliminates manual flushing with sensor-triggered, hands-free operation across commercial facilities. Built with ABS chrome panel and stainless steel for durability in high-traffic environments, this model supports both AC mains and 6V DC battery power, ensuring continuous operation during power outages. Ideal for offices, hotels, and institutional facilities requiring reliable, hygienic urinal automation.
| Specification | Details |
|---|---|
| Body Material | ABS Chrome Panel + Stainless Steel |
| Power | 230V AC / 6V DC Battery |
| Sensor Type | IR Touch-Free |
| Water Pressure | 0.5 to 7 Bar |
| Sensing Range | 35 to 70 cm |
| Power Consumption | Under 0.5W |
| Life Cycle | 500,000 on/off cycles |
| Battery Type | 4 x AA Alkaline |
| Product Warranty | 1 Year |
AUTOMATIC URINAL FLUSHER (Inbuilt Pot) : US – 05
An automatic urinal flusher with an inbuilt pot sensor, designed for urinals where a clean wall finish is preferred and a separate flush panel is not required. The US-05 mounts directly within the urinal pot, triggering a touchless flush automatically after each use with no visible hardware on the wall.
| Specification | Details |
|---|---|
| Body Material | Brass, chrome-plated panel |
| Sensor Type | Infrared, Inbuilt Pot Sensor |
| Sensing Distance | Adjustable, 35 to 70 cm |
| Power Supply | 6V DC (4 AA alkaline batteries) |
| Power Consumption | Under 0.5W |
| Water Pressure | 0.5 to 7 Bar |
| Water Temperature | 0 to 60 degrees Celsius |
| Switching Time | Under 0.7 seconds |
| Life Cycle | 500,000 on/off cycles |
| Product Warranty | 1 Year |
Automatic Urinal Flusher – Concealed (with glass panel) : US – 04
A concealed urinal flusher with a glass panel finish for commercial washrooms where aesthetics are as important as hygiene. The US-04 sits flush against the wall with no exposed pipework, triggering an automatic infrared flush after each use with zero contact required.
| Specification | Details |
|---|---|
| Body Material | ABS Chrome Panel with Glass Plate |
| Sensor Type | Infrared, Touch-Free |
| Installation | Concealed |
| Sensing Distance | Adjustable, 35 to 70 cm |
| Power Supply | 230V AC 50/60Hz or 6V (4 AA alkaline batteries) |
| Power Consumption | Under 0.5W |
| Water Pressure | 0.5 to 7 Bar |
| Water Temperature | 0 to 60 degrees Celsius |
| Switching Time | Under 0.7 seconds |
| Life Cycle | 500,000 on/off cycles |
| Product Warranty | 1 Year |
Automatic Urinal Flusher- Concealed : US – 02
The US-02 concealed automatic urinal flusher integrates seamlessly into wall installations with its hidden mechanism design. The ABS chrome panel front matches modern restroom aesthetics while providing reliable touch-free flushing. Dual AC and battery power ensures operation continues even during power interruptions, making it ideal for facilities that prioritize both appearance and uninterrupted service.
| Specification | Details |
|---|---|
| Body Material | ABS Chrome Panel + Stainless Steel |
| Power | 230V AC / 6V DC Battery |
| Sensor Type | IR Touch-Free |
| Water Pressure | 0.5 to 7 Bar |
| Sensing Range | 35 to 70 cm |
| Power Consumption | Under 0.5W |
| Life Cycle | 500,000 on/off cycles |
| Battery Type | 4 x AA Alkaline |
| Product Warranty | 1 Year |
