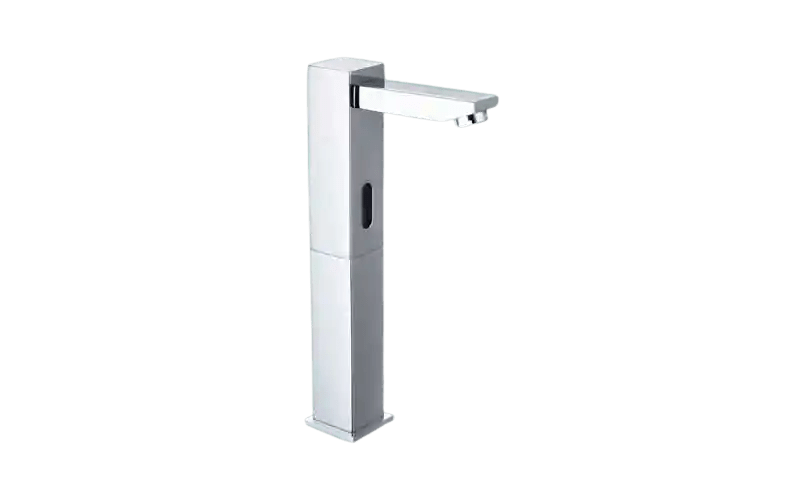

Square Pillar Automatic Sensor Tap : AT – 09
A square pillar sensor tap for commercial washrooms that stands out with its geometric block form on counter top basins. The AT-09 uses infrared sensing to deliver hands-free water flow with no surface contact, making it a strong fit for modern office washrooms and institutional facilities where design consistency matters.
| Specification | Details |
|---|---|
| Material | Brass, chrome-plated |
| Mount Type | Counter Top |
| Sensing Distance | Adjustable, up to 15 cm |
| Power Supply | 230V AC 50/60Hz or 6V (4 AA alkaline batteries) |
| Power Consumption | Under 0.5W |
| Water Pressure | 0.5 to 7 Bar |
| Water Temperature | 0 to 60 degrees Celsius |
| Switching Time | Under 0.7 seconds |
| Life Cycle | 500,000 on/off cycles |
| Product Warranty | 1 Year |
Related products
Automatic Water Tap + Soap Dispenser- AT 02
Eliminate two washroom touchpoints in one installation. This automatic sensor tap with integrated foam soap dispenser is designed for high-traffic commercial washrooms where hygiene compliance and minimal maintenance are non-negotiable. Infrared detection activates water flow and soap delivery independently, with zero contact from entry to exit.
| Specification | Value |
|---|---|
| Material | Brass, chrome-plated |
| Sensing Distance | Adjustable, up to 15 cm |
| Soap Type | Foam (volume adjustable) |
| Power Supply | 230V AC/ 50-60 Hz |
| Water Pressure | 0.5 to 7 Bar |
| Water Temperature | 0.1 to 60 degrees Celsius |
| Switching Time | Under 0.7 seconds |
| Mount | under-counter basin |
| Product Warranty | 1 Year |
Classic Slim Automatic Sensor Tap : AT – 01
A reliable classic slim sensor tap for commercial washrooms where hygiene and continuous use are non-negotiable. The AT-01 uses infrared sensing to activate water flow hands-free, eliminating touch points and reducing cross-contamination risk across high-traffic facilities.
| Specification | Value |
|---|---|
| Material | Brass, chrome-plated |
| Mount Type | Under Counter Basin |
| Sensing Distance | Adjustable, 28 to 32 cm |
| Power Supply | 230V AC 50/60Hz or 6V (4 AA alkaline batteries) |
| Power Consumption | Under 0.5W |
| Water Pressure | 0.5 to 7 Bar |
| Water Temperature | 0.1 to 60 degrees Celsius |
| Switching Time | Under 0.7 seconds |
| Life Cycle | 500,000 on/off cycles |
| Product Warranty | 1 Year |
Compact Automatic Sensor Tap : AT – 03
A space-efficient compact sensor tap for commercial washrooms where counter space is limited but hygiene standards are not. The AT-03 uses infrared sensing to deliver hands-free water flow instantly, reducing cross-contamination across high-traffic facilities.
| Specification | Details |
|---|---|
| Material | Brass, chrome-plated |
| Mount Type | Under Counter |
| Sensing Distance | Adjustable, up to 15 cm |
| Power Supply | 230V AC 50/60Hz or 6V (4 AA alkaline batteries) |
| Power Consumption | Under 0.5W |
| Water Pressure | 0.5 to 7 Bar |
| Water Temperature | 0 to 60 degrees Celsius |
| Switching Time | Under 0.7 seconds |
| Life Cycle | 500,000 on/off cycles |
| Product Warranty | 1 Year |
Curved Automatic Sensor Tap: AT – 05
A curved chrome sensor tap for commercial washrooms that pairs a distinctive arc silhouette with reliable touchless performance. The AT-05 activates water flow the moment hands are detected, with no surface contact required, keeping hygiene consistent across high-traffic washrooms.
| Specification | Details |
|---|---|
| Material | Brass, chrome-plated |
| Mount Type | Under Counter |
| Sensing Distance | Adjustable, up to 15 cm |
| Power Supply | 230V AC 50/60Hz or 6V (4 AA alkaline batteries) |
| Power Consumption | Under 0.5W |
| Water Pressure | 0.5 to 7 Bar |
| Water Temperature | 0 to 60 degrees Celsius |
| Switching Time | Under 0.7 seconds |
| Life Cycle | 500,000 on/off cycles |
| Product Warranty | 1 Year |
Gooseneck Sensor Tap : AT – 06
A gooseneck sensor tap for commercial washrooms that combines a tall sweeping neck with hands-free infrared sensing. The AT-06 sits on countertop basins and is a strong choice for reception washrooms, hotel lobbies, and premium office facilities where design and hygiene carry equal weight.
| Specification | Details |
|---|---|
| Material | Copper, chrome-plated |
| Mount Type | Counter Top |
| Sensing Distance | Adjustable, up to 15 cm |
| Power Supply | 230V AC 50/60Hz or 6V (4 AA alkaline batteries) |
| Power Consumption | Under 0.5W |
| Water Pressure | 0.5 to 7 Bar |
| Water Temperature | 0 to 60 degrees Celsius |
| Switching Time | Under 0.7 seconds |
| Life Cycle | 500,000 on/off cycles |
| Product Warranty | 1 Year |
Slim Automatic Sensor Tap : AT – 08
A slim and tall sensor tap for commercial washrooms where a sleek counter top presence is preferred without compromising on touchless performance. The AT-08 uses infrared sensing to activate water flow hands-free, giving commercial washrooms the height they need while keeping the profile clean and uncluttered.
| Specification | Details |
|---|---|
| Material | Brass, chrome-plated |
| Mount Type | Counter Top |
| Sensing Distance | Adjustable, up to 15 cm |
| Power Supply | 230V AC 50/60Hz or 6V (4 AA alkaline batteries) |
| Power Consumption | Under 0.5W |
| Water Pressure | 0.5 to 7 Bar |
| Water Temperature | 0 to 60 degrees Celsius |
| Switching Time | Under 0.7 seconds |
| Life Cycle | 500,000 on/off cycles |
| Product Warranty | 1 Year |
Tall Neck Automatic Sensor Tap : AT – 07
A tall neck sensor tap for commercial washrooms that delivers hands-free water flow from an elevated counter top position. The AT-07 is built for spaces where basin depth requires extra reach, maintaining consistent hygiene without any surface contact.
| Specification | Details |
|---|---|
| Material | Copper, chrome-plated |
| Mount Type | Counter Top |
| Sensing Distance | Adjustable, up to 15 cm |
| Power Supply | 230V AC 50/60Hz or 6V (4 AA alkaline batteries) |
| Power Consumption | Under 0.5W |
| Water Pressure | 0.5 to 7 Bar |
| Water Temperature | 0 to 60 degrees Celsius |
| Switching Time | Under 0.7 seconds |
| Life Cycle | 500,000 on/off cycles |
| Product Warranty | 1 Year |
Wall Mount Automatic Sensor Tap : W AT – 04
A wall-mounted spout sensor tap for commercial washrooms where under-counter space is unavailable or a cleaner wall-finish is preferred. The WAT-04 uses infrared sensing to deliver hands-free water flow with no surface contact, keeping hygiene standards consistent.
| Specification | Details |
|---|---|
| Material | Brass, chrome-plated |
| Mount Type | Wall Mounted |
| Sensing Distance | Adjustable, up to 15 cm |
| Power Supply | 6V DC (4 AA alkaline batteries) |
| Power Consumption | Under 0.5W |
| Water Pressure | 0.5 to 7 Bar |
| Water Temperature | 0 to 60 degrees Celsius |
| Switching Time | Under 0.7 seconds |
| Life Cycle | 500,000 on/off cycles |
| Product Warranty | 1 Year |
